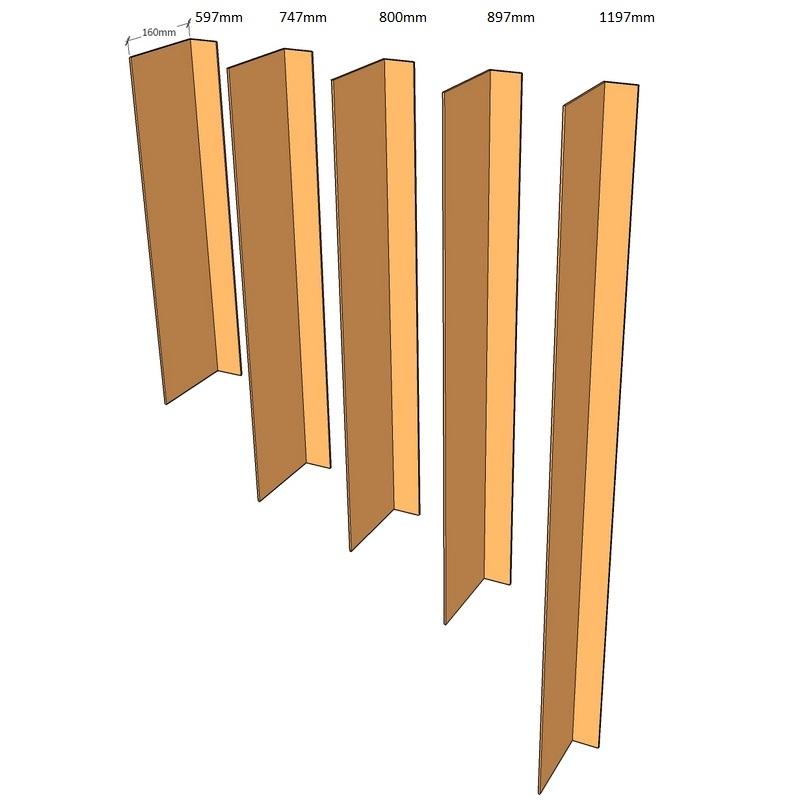

Our system is ideal for retaining walls 600mm up to 1200mm Using Corten steel angle posts set in concrete pile holes. We are also able to supply taller or shorter retaining walls if required using the same system.
Walls no capping

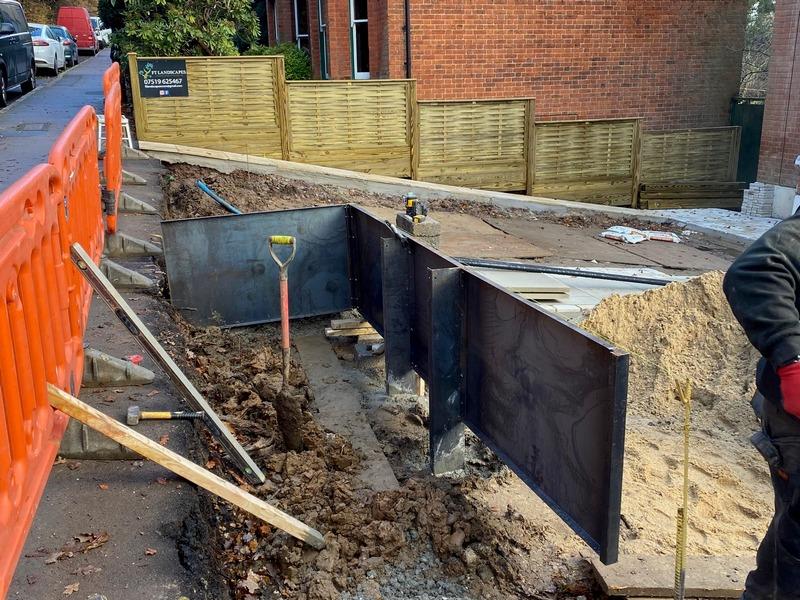

Corten wall braced while concrete sets
Walls with capping
Corten retaining wall system with hidden fixings and is finished off with a rounded corten capping
Retaining wall steps
All parts in our corten retaining wall system come ready to install, with no special tools required The steel is either screwed or bolted together

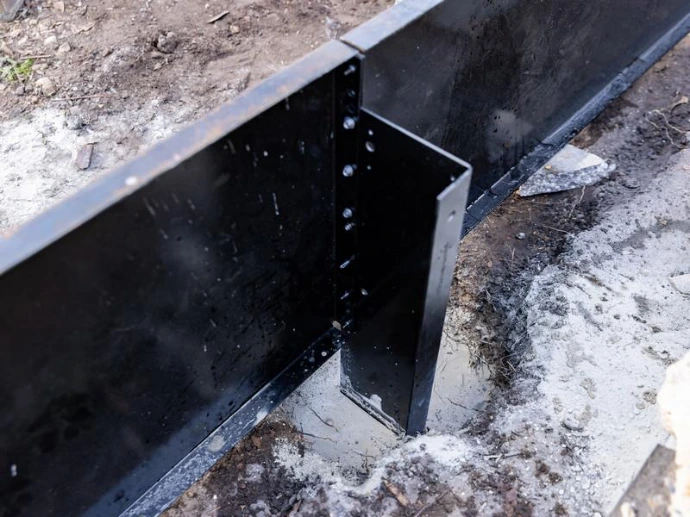

Corten post ready for next panel to be screwed or boltes on
This is an engineer designed system, using the strong steel posts set in concrete pile hole construction method. This gives you a narrow retaining wall, ideal for where space is limited.
[email protected]

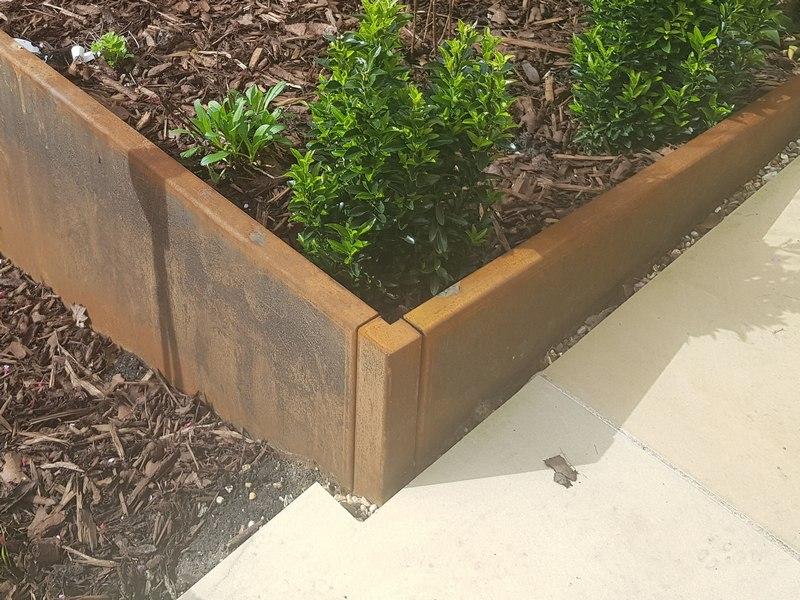

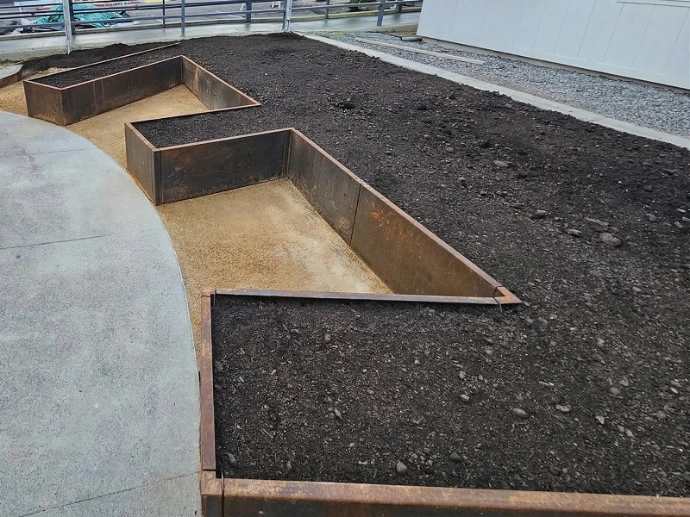

90deg external corner joiner

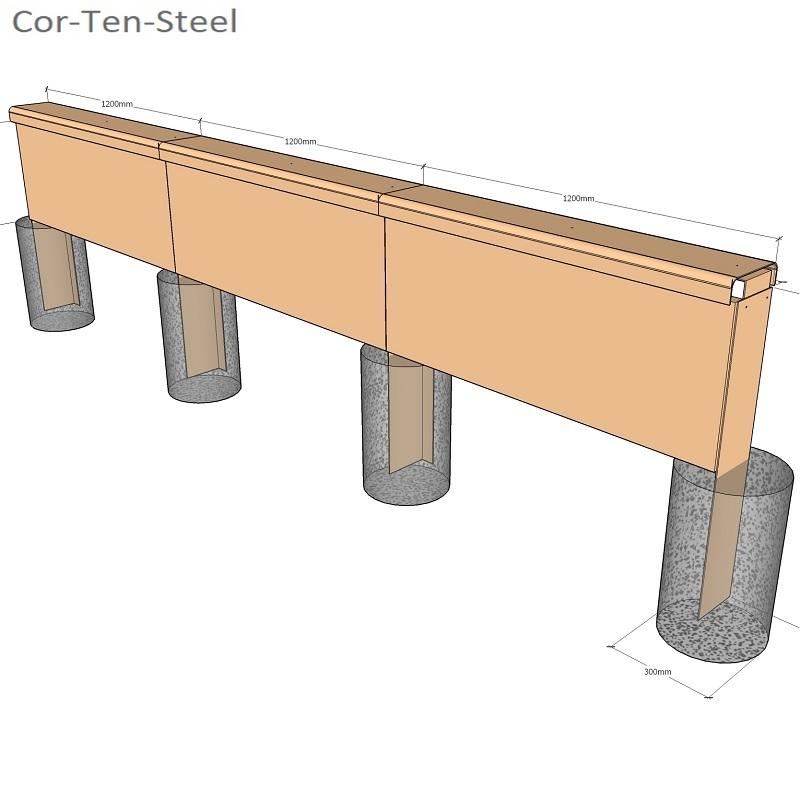

The modular layout has over 50 different panel sizes to choose from, this enables you to build corten retaining walls that suit almost any location. With pred-made corner joiners and curved sections

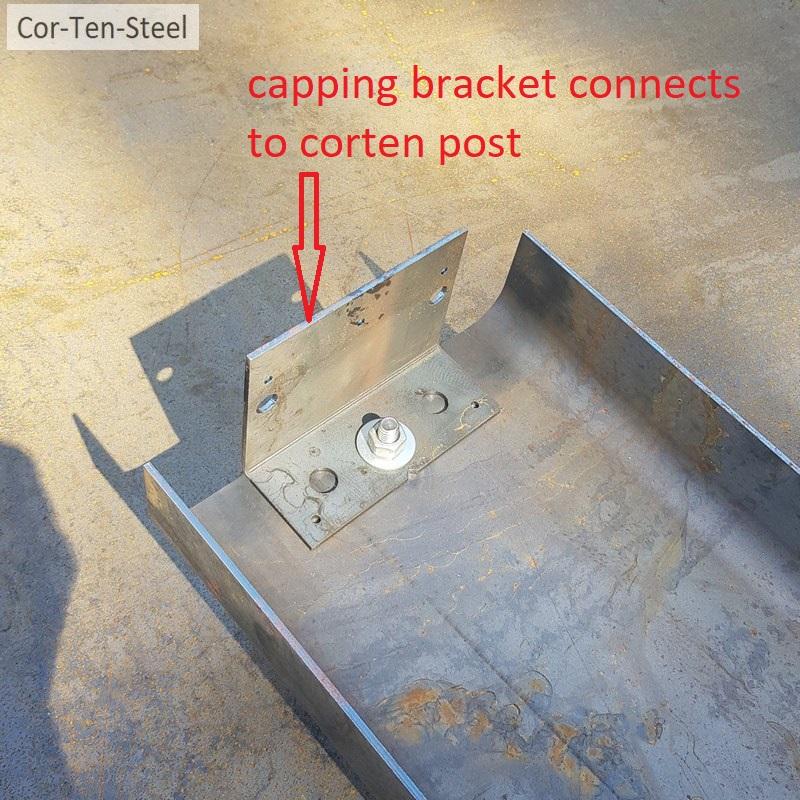

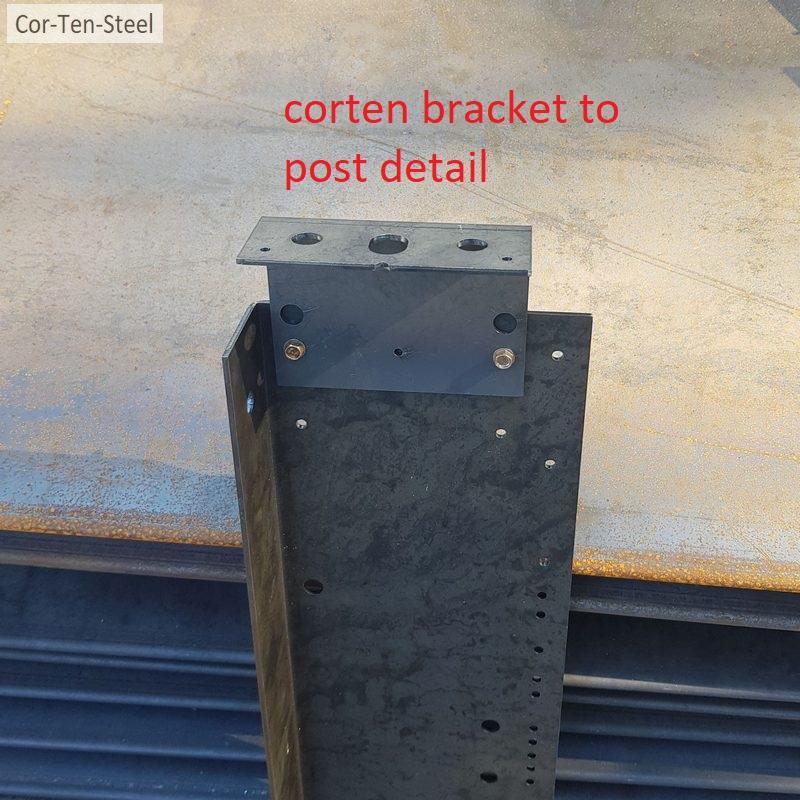

Capping bracket added to post
Secure capping brackets to posts with TEK screws
How to install capping video

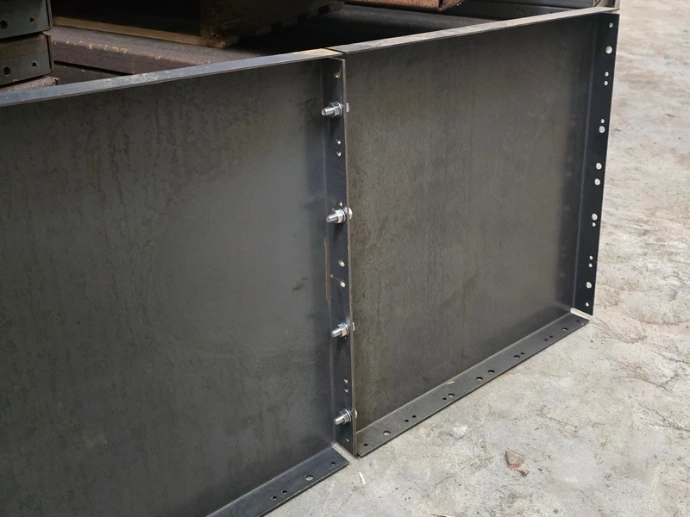

Cappings come with M10 nuts and bolts to connect to brackets

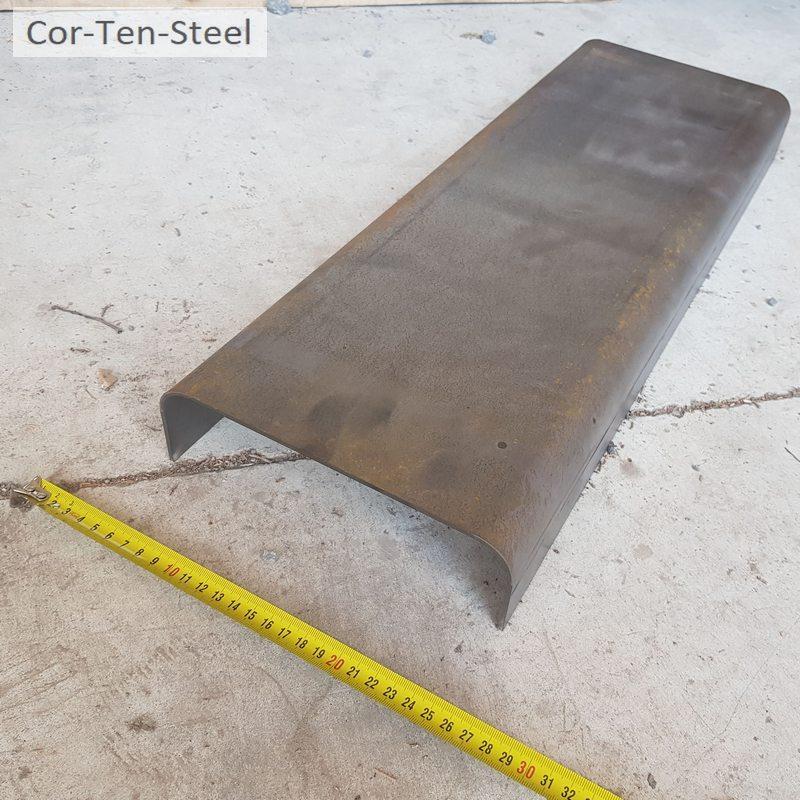

Capping 215mm x 63mm

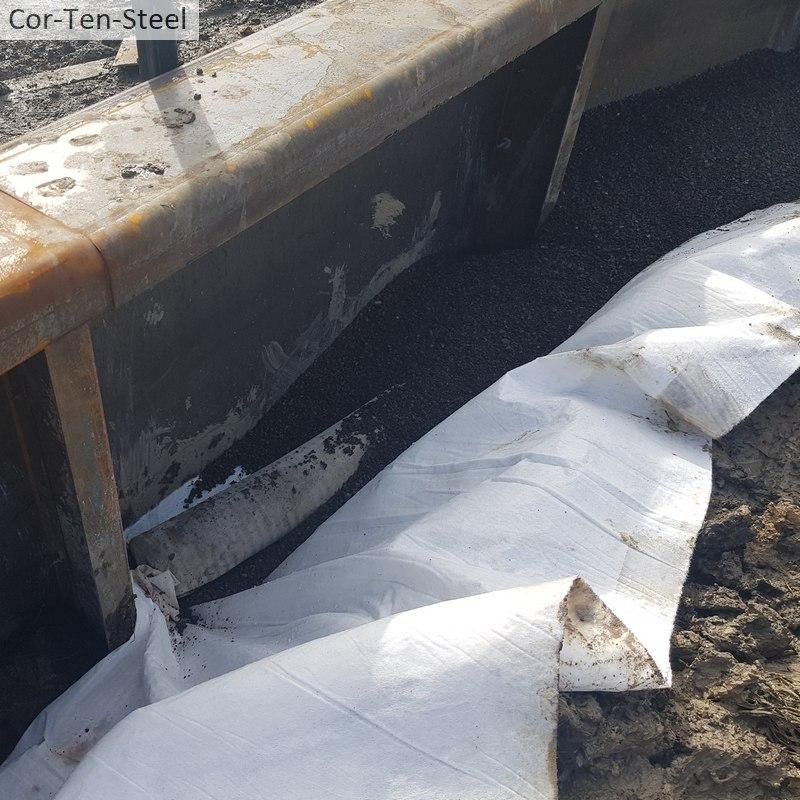

A well built corten retaining wall with proper drainage will easily last 30-50yrs plus, depending on the environment
Corten Steel Retaining Walls
DIY friendly and easy to install
Easy assembly

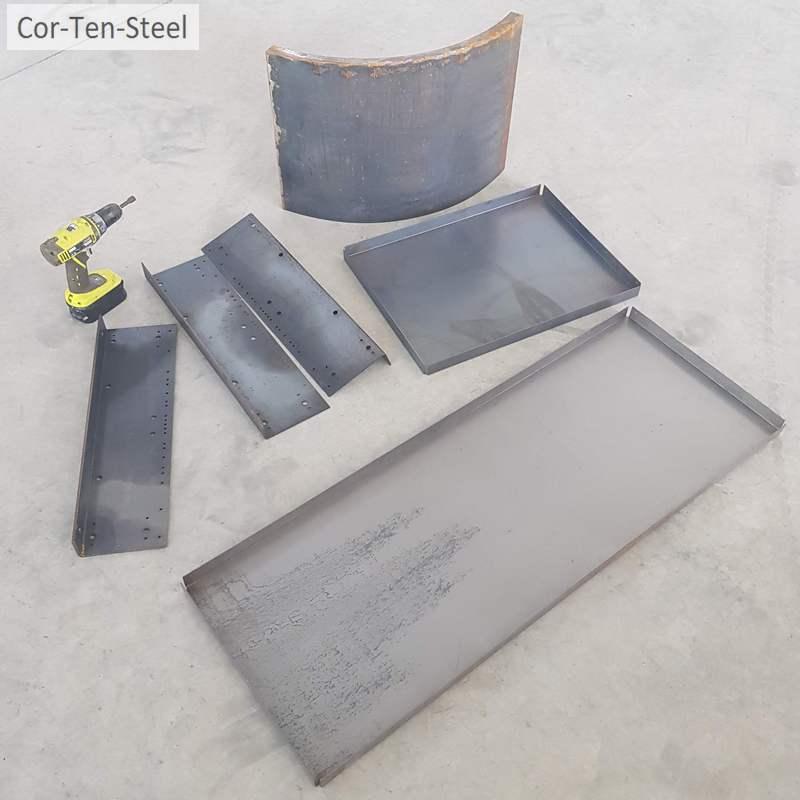

All parts predrilled for easy assembly.
Curved Pieces
Internal and external curved pieces available.
Any questions

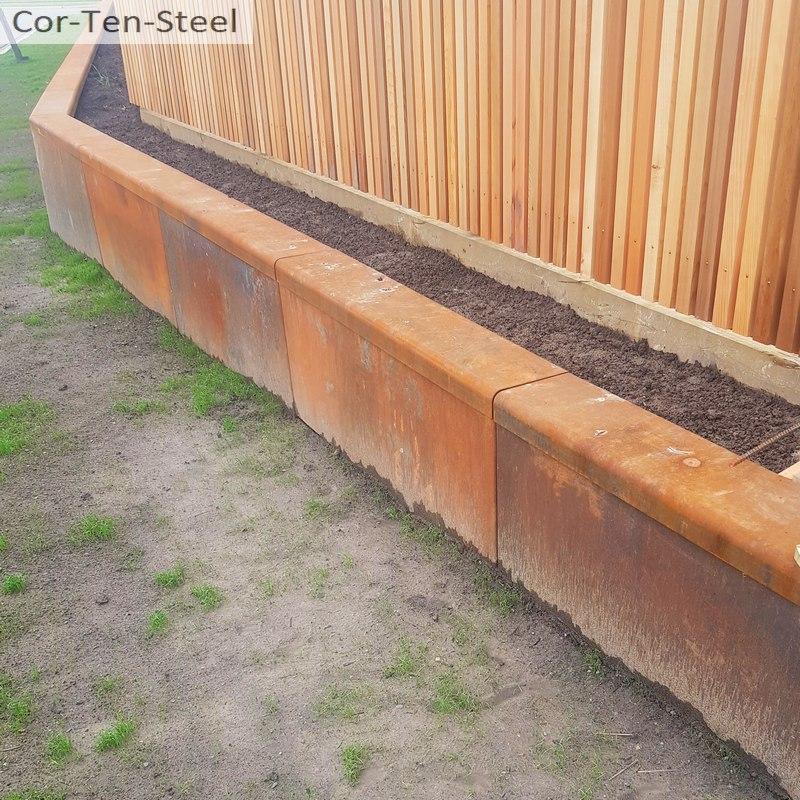

Corten retaining wall with capping
Corten steel requires no maintenance, as over time it develops a crystalline rust patina that dramatically reduces further corrosion

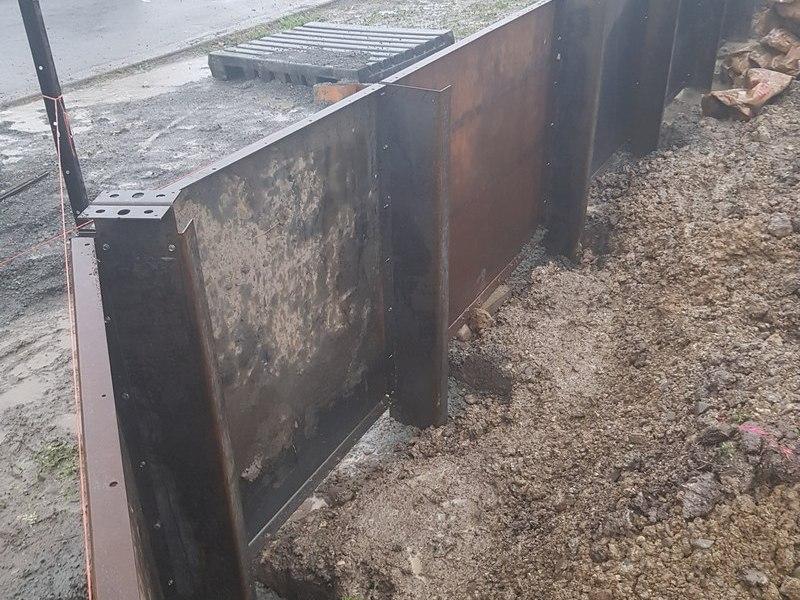

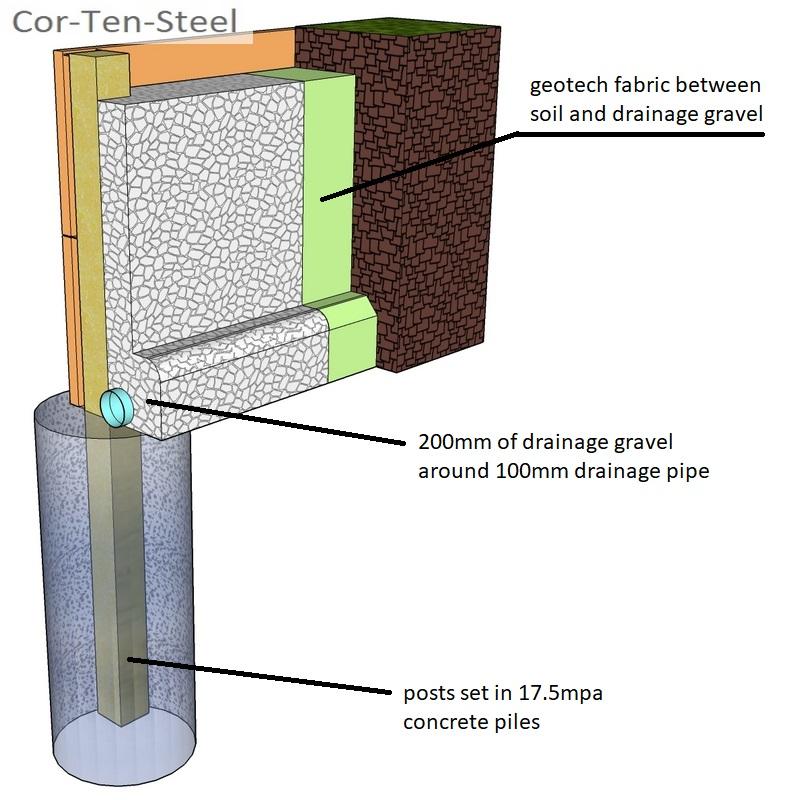

Posts set in concrete pile holes

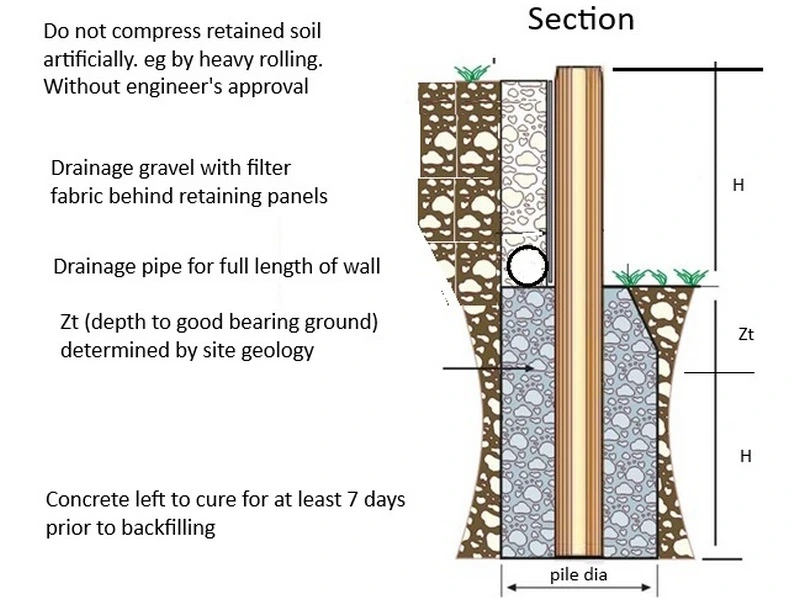

Generally the retaining wall pile hole depth is equal to the height of the retaining wall. However in softer soils or walls supporting sloping ground, driveways, or buildings, the post and pile retaining wall method solves this by adjusting the post spacings and pile depths.

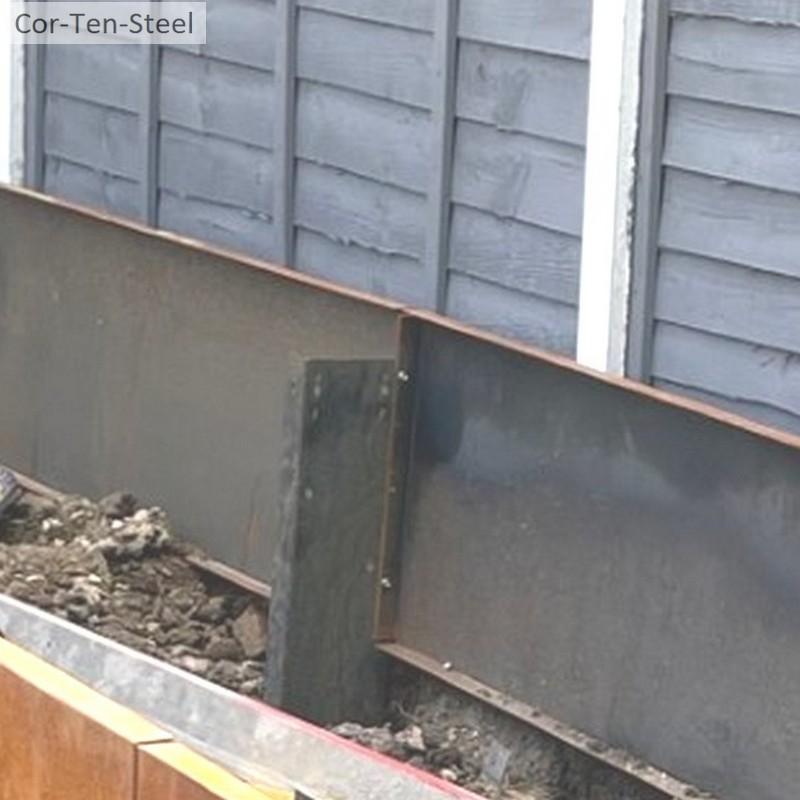

Option to drop corten post below top panel
Corten steel requires no maintenance, as over time it develops a crystalline rust patina that dramatically reduces further corrosion
Temporary Braces

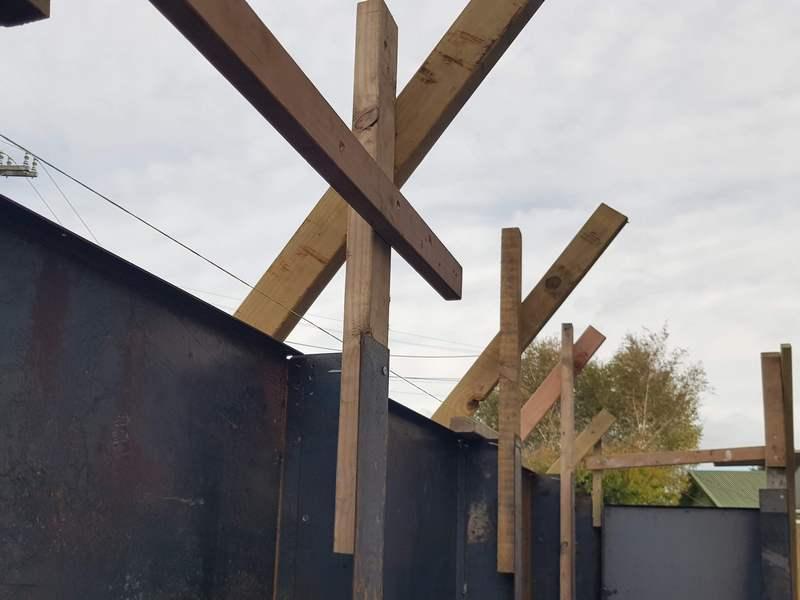

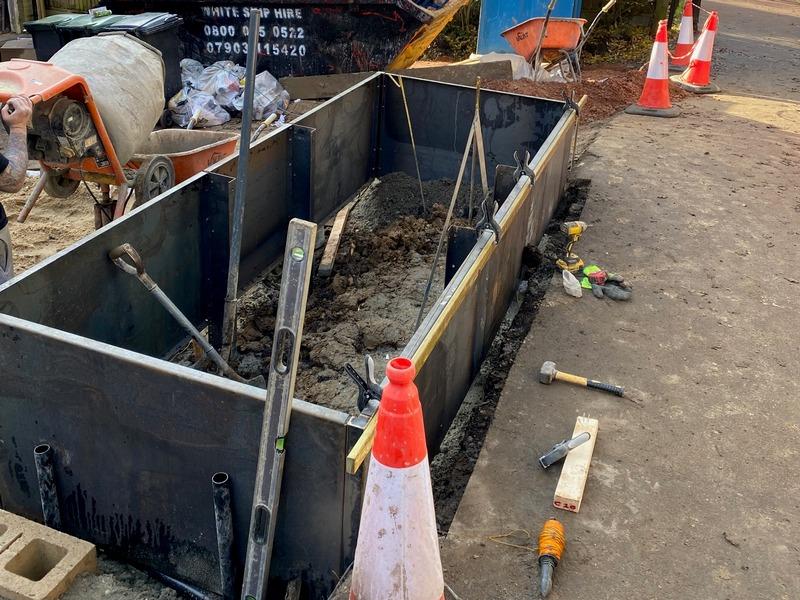

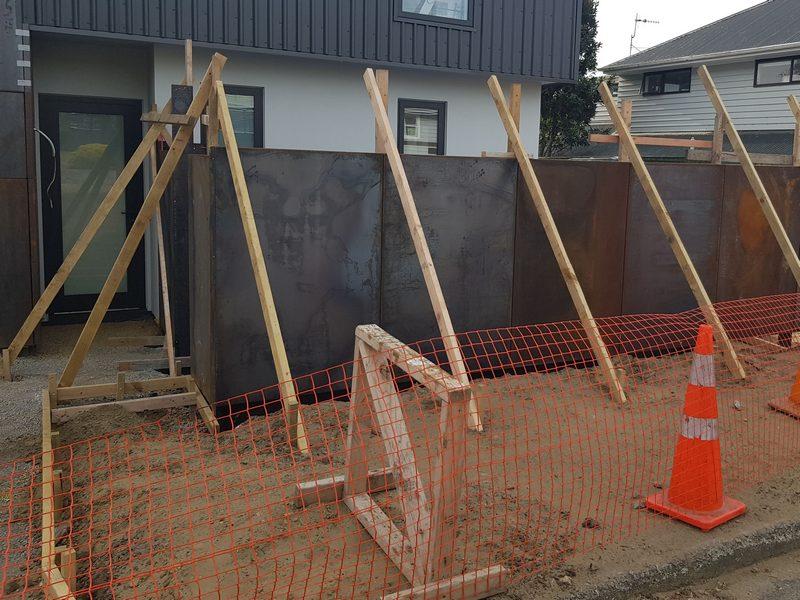

Corten support posts, with temporary timber bracing, before concrete is poured into pile holes
Temporary Braces

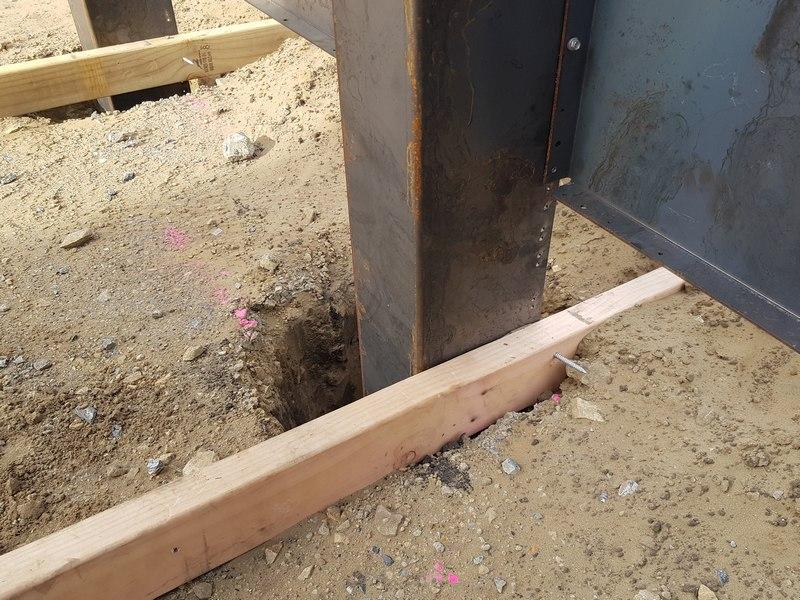

Corten support posts, with temporary timber bracing, at bottom of post. The corten steel posts have pre-drilled holes, making it easy to add the timber braces.
Temporary Braces
Corten support posts, with temporary timber bracing, at top of post. Remove bracing once concrete has set
Corten Steel Care and Maintenance
Corten steel, also known as weathering steel, is a high tensile steel that forms a protective layer of rust or patina when exposed to the elements. This patina shields the steel from further corrosion, giving it a characteristic reddish-brown color.

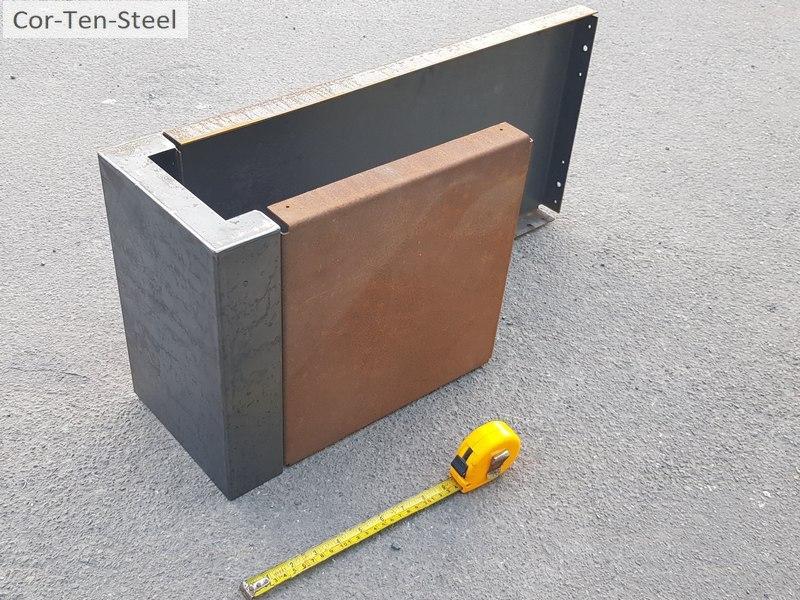

Corten Square End Panel
This allows for a small planter garden to be constructed at the top of tghe wall

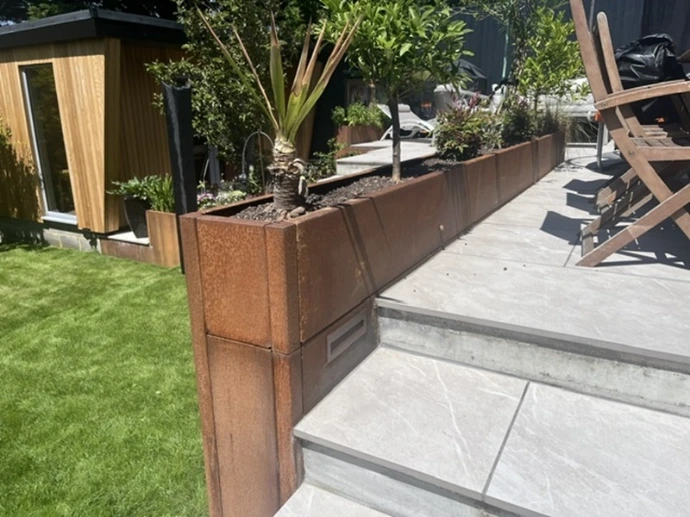

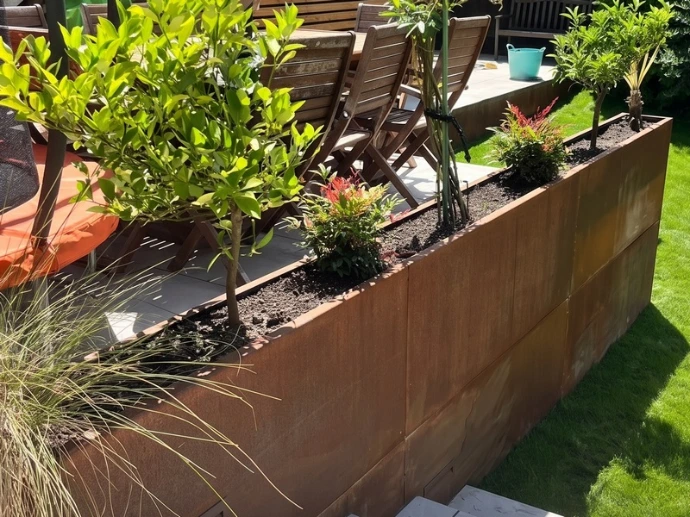

Two sided corten construction

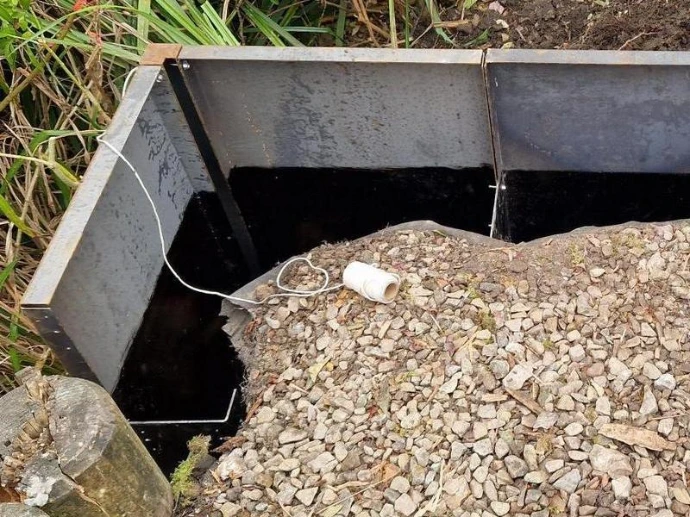

Steel in contact with soil coated with Sika Blackseal Plus or equivalent
Corten square end panel
300mm wide double wall
Corten Steel Care and Maintenance
Corten steel, also known as weathering steel, is a high tensile steel that forms a protective layer of rust or patina when exposed to the elements. This patina shields the steel from further corrosion, giving it a characteristic reddish-brown color.
Corten Square End Panel

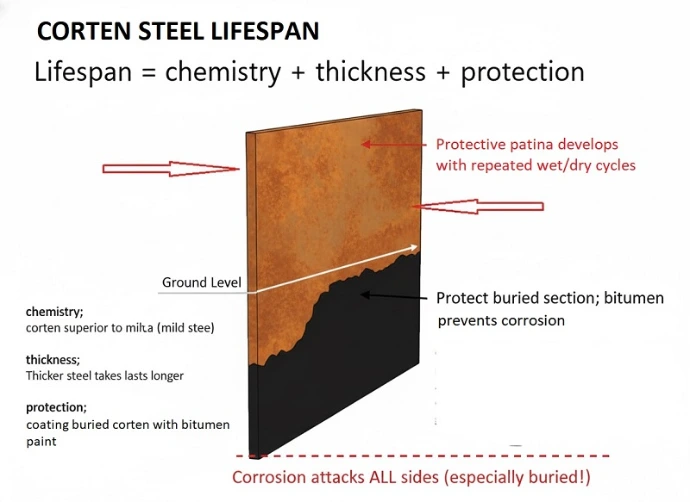

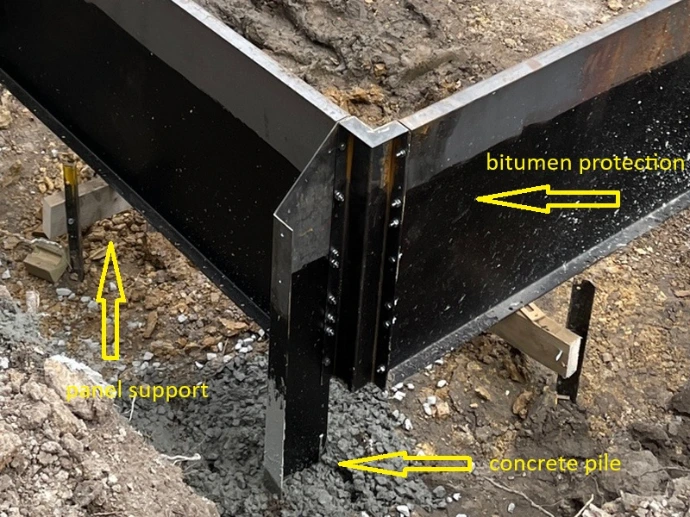

Coat buried corten with bitumen to extend the life-span
Coat Buried Corten
Steel in contact with soil coated with Sika Blackseal Plus or equivalent
More info on lie-span
Avoid thin corten, which after as little as 10 years may be structurally inadequate
Corten steel guides
String line Profile

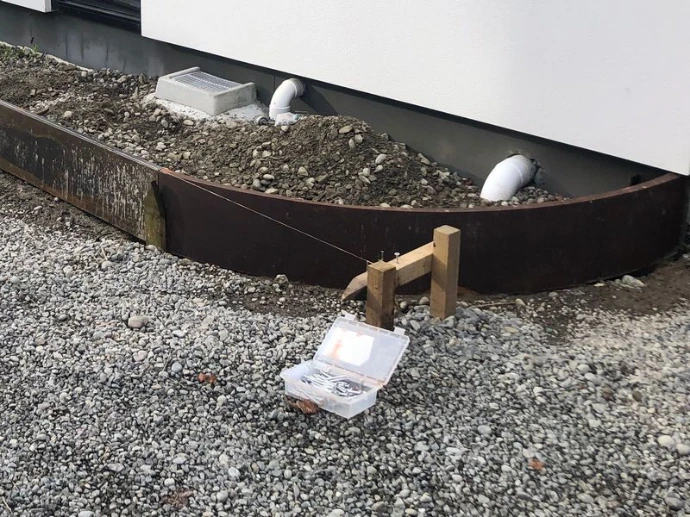

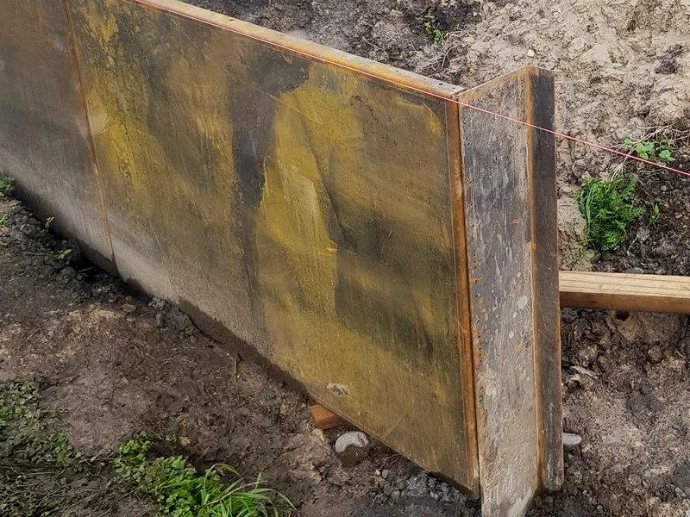

Setting up string line to ensure straight panels

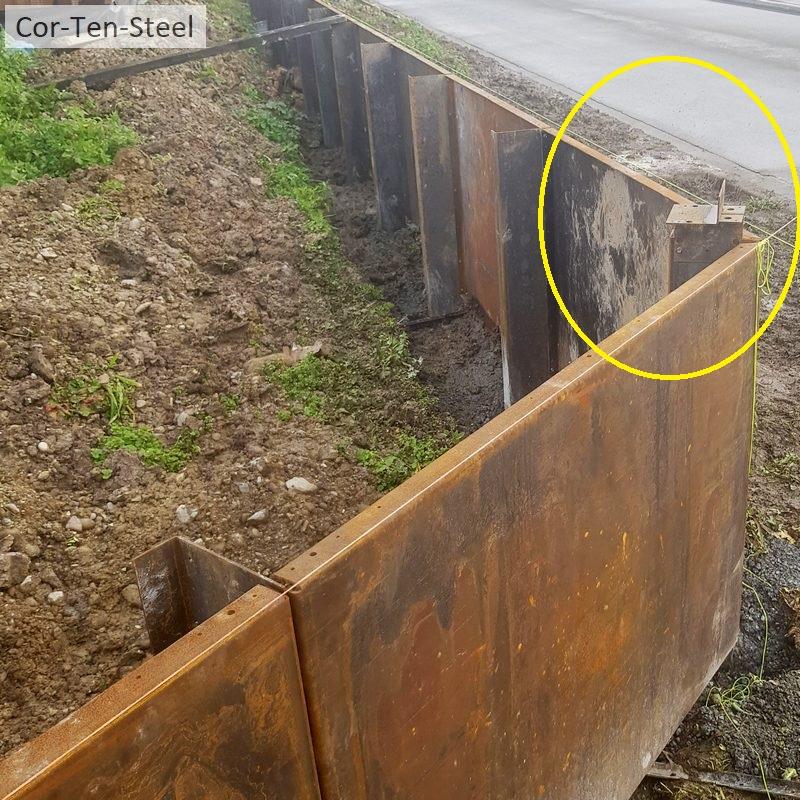

Temporary Panel and Post braces

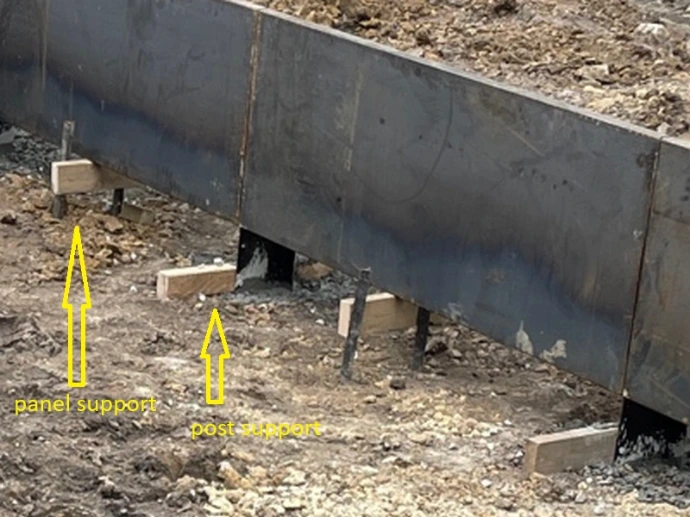

Corten support posts, with temporary timber bracing. Remove bracing once concrete has set
Temporary Panel Supports
The corten steel posts and buried panels coated with bitumen paint

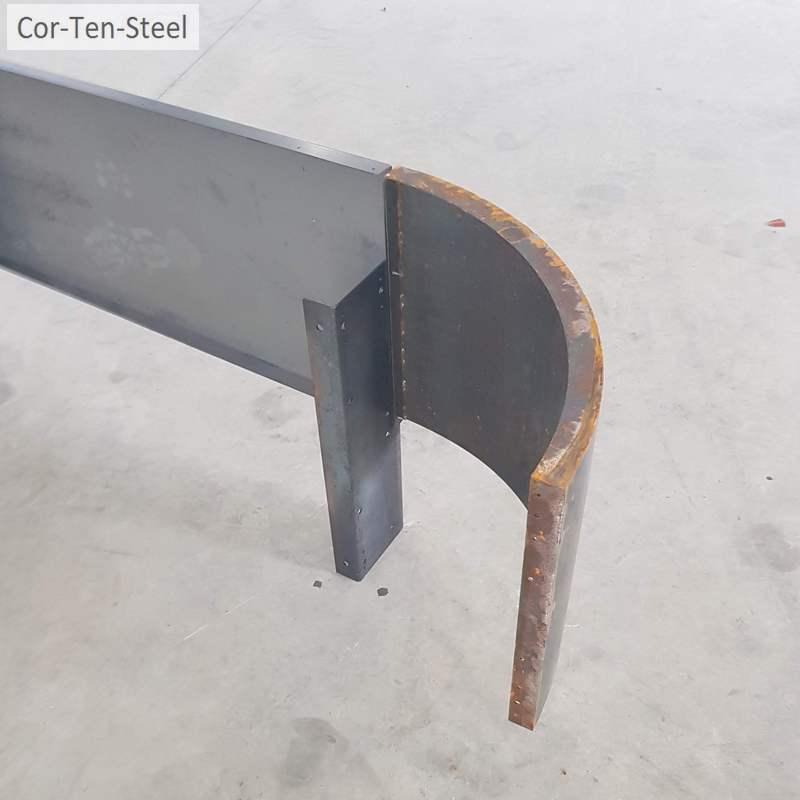

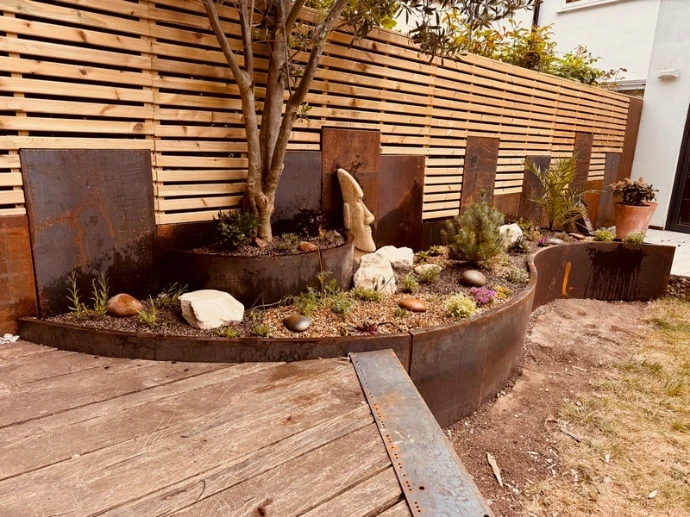

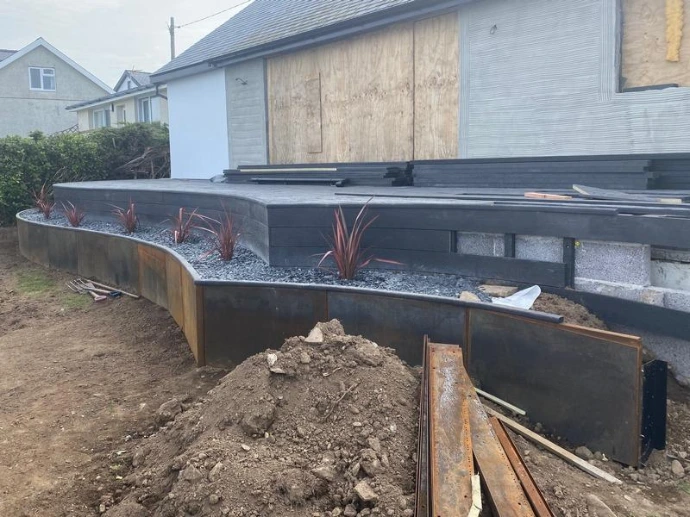

Curved Panels
We work with landscapers, architects, engineers, and Diyers to provide corten retaining wall layouts that are easy to assemble, we provide these retaining wall layouts for free. Please contact us via email

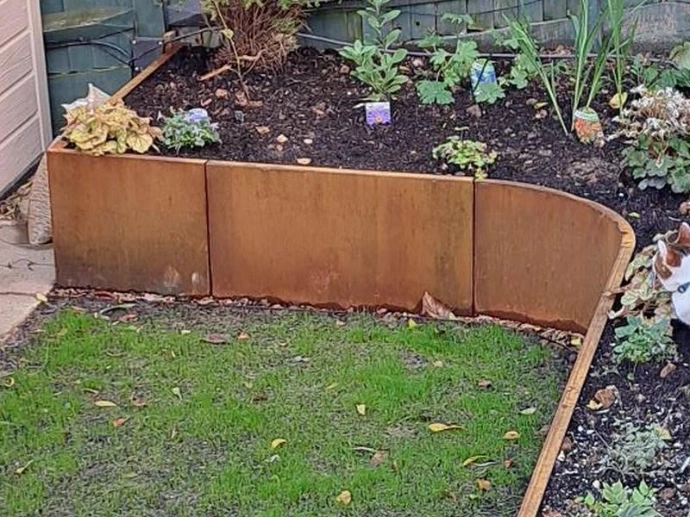

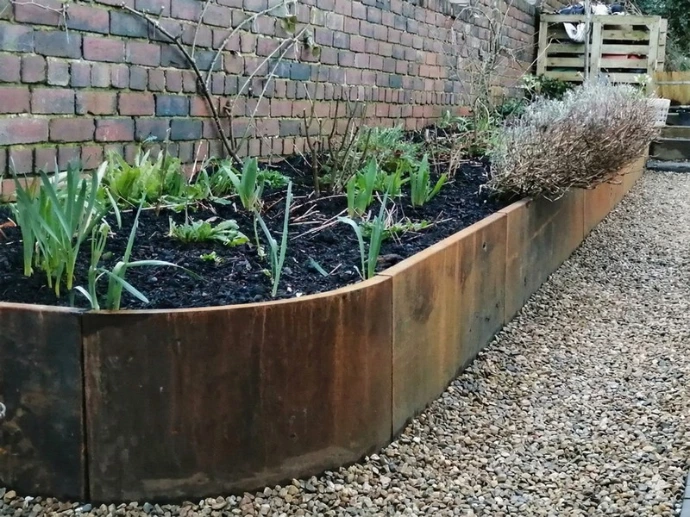

External curved panels
Curved change of height

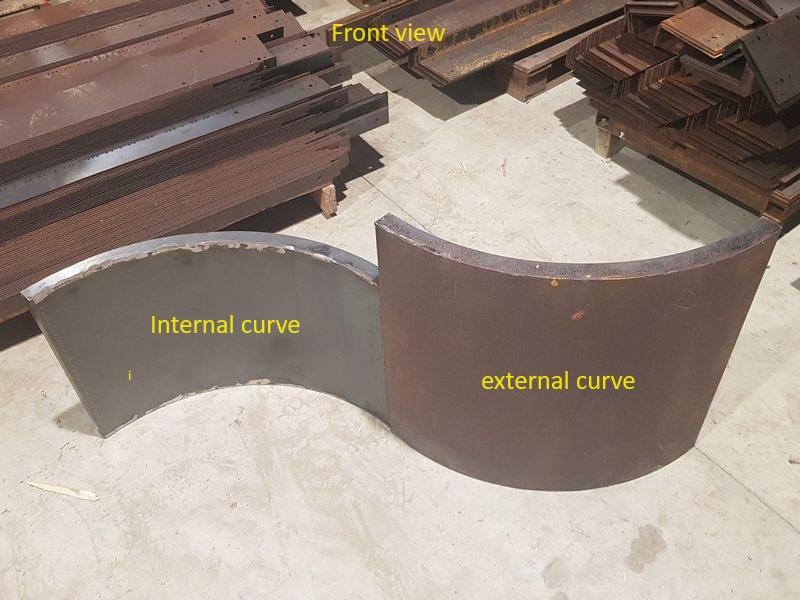

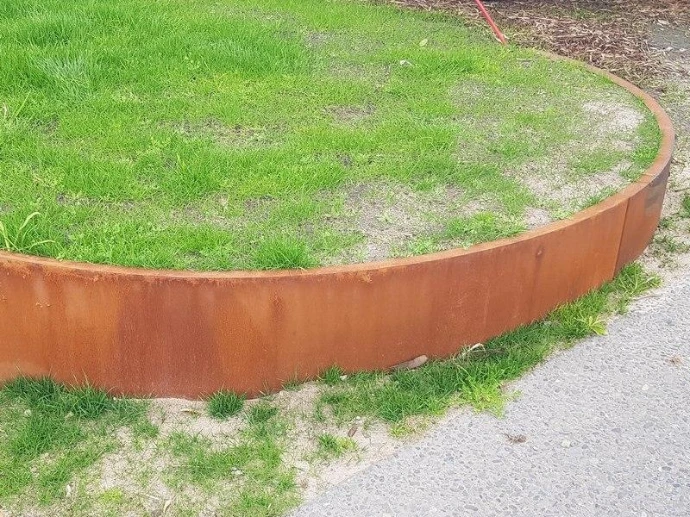

Curved Panels various radii
Internal and external curved panels
Straight panels creating curved wall
Curved Panels
We work with landscapers, architects, engineers, and Diyers to provide corten retaining wall layouts that are easy to assemble, we provide these retaining wall layouts for free. Please contact us via email

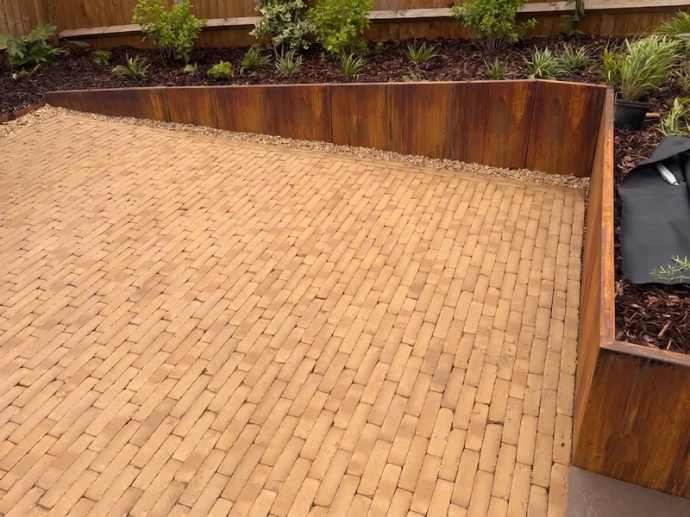

Corner joiners have flexibility
Angles can be off-square
Change of height
Transition panels
Transition panels

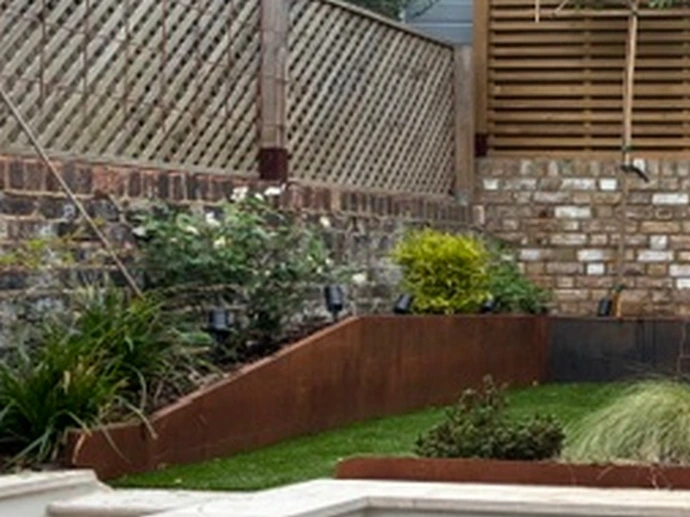

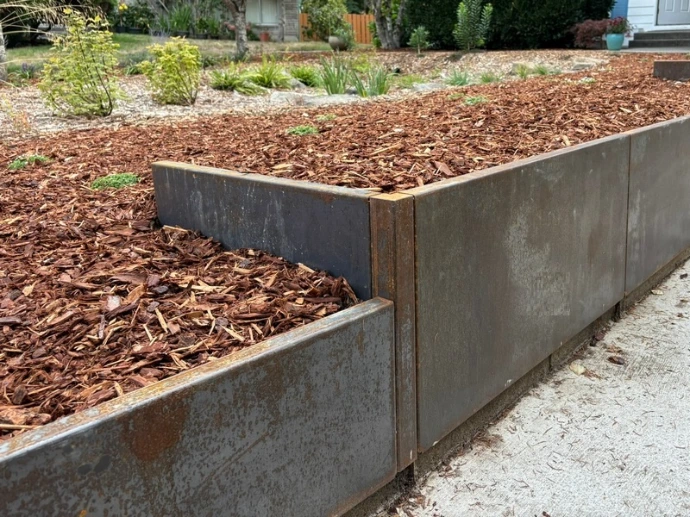

Change of height with Transition panel
M8 Stainless steel bolts

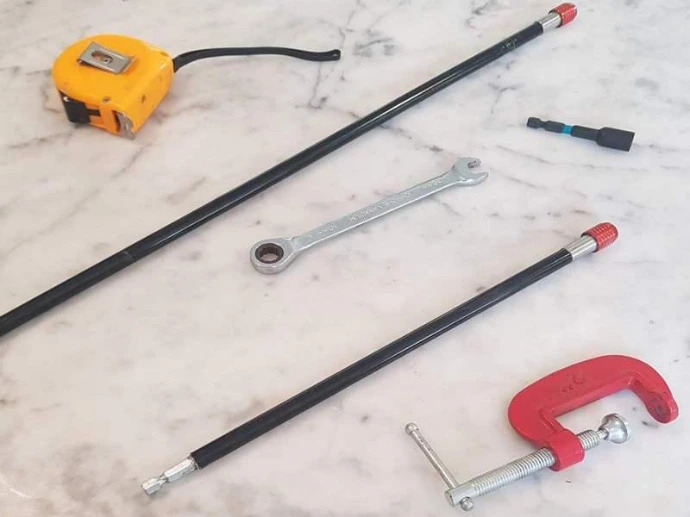

5/16th” (7.9mm) Nut driver Variable speed drill G clamps Ratchet spanner Tape measure Drill extension bar (optional)

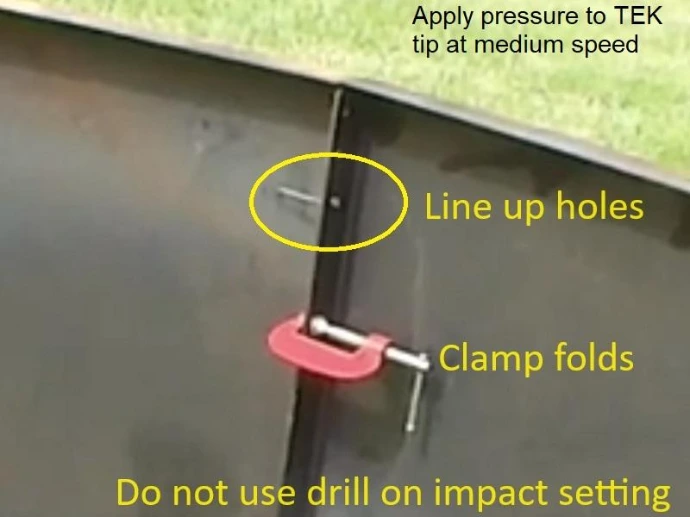

1/ Do not use drill on impact 2/ Perfectly align holes and clamp panels 3/ Apply firm pressure to TEK screw tip at low to medium speed

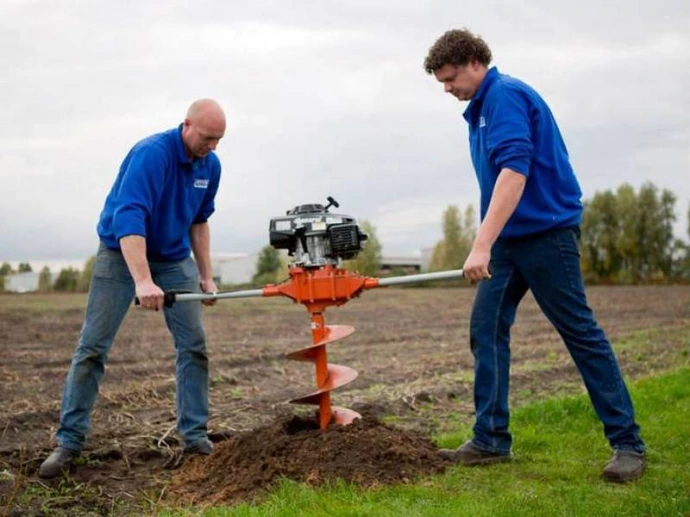

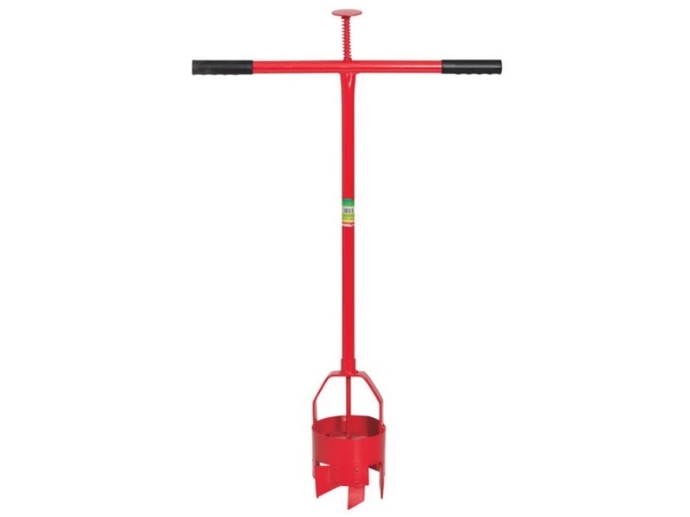

Hand Auger
Petrol Auger

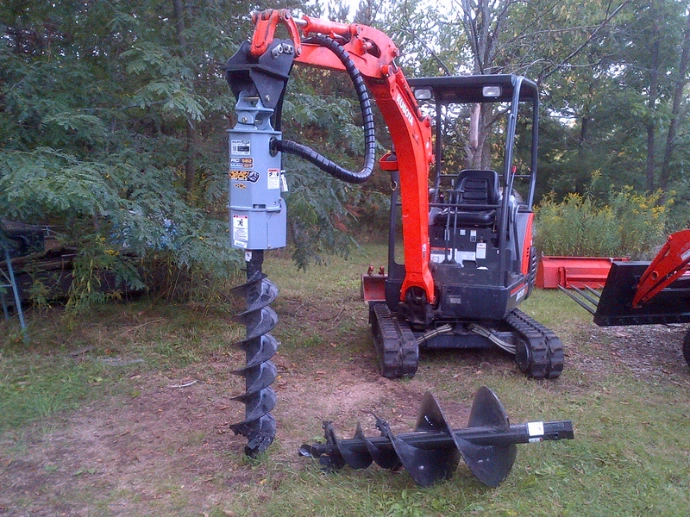

Digger Auger

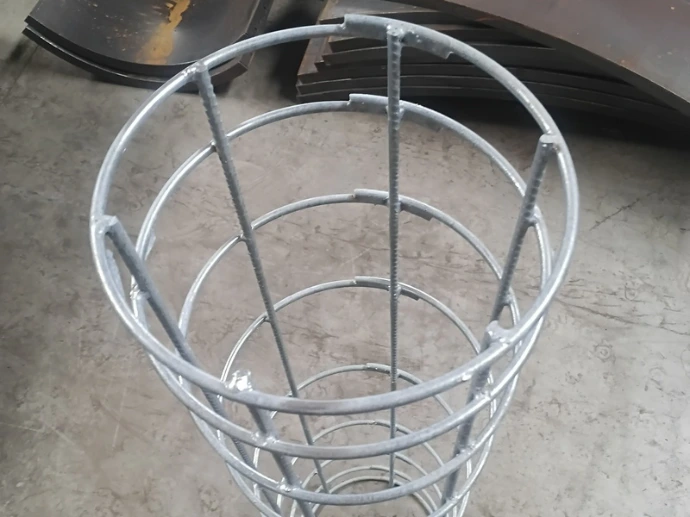

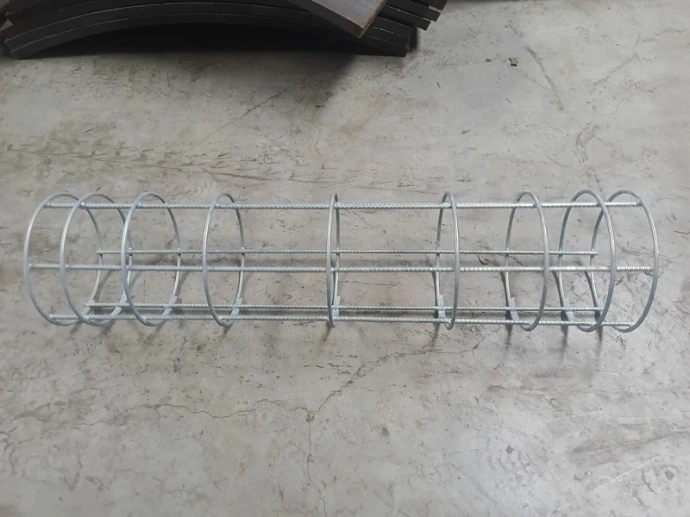

Galvanised reinforcing cages
For larger retaining wall support posts

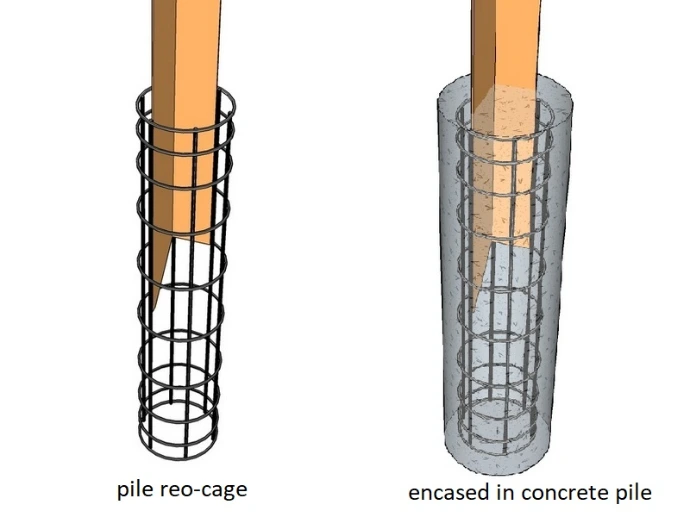

Galvanised reinforcing pile cages
For taller retaining walls and retiming walls requiring deeper piles holes engineers frequently specify pile cages
